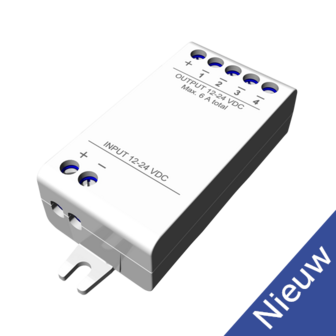

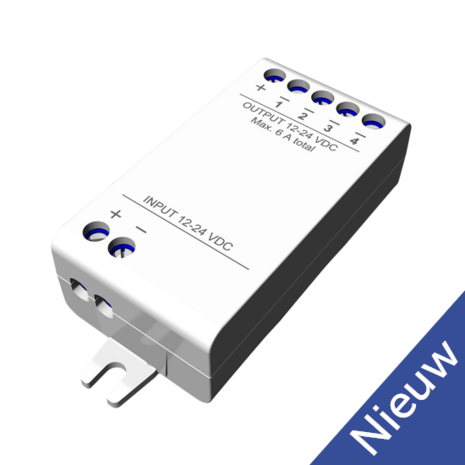

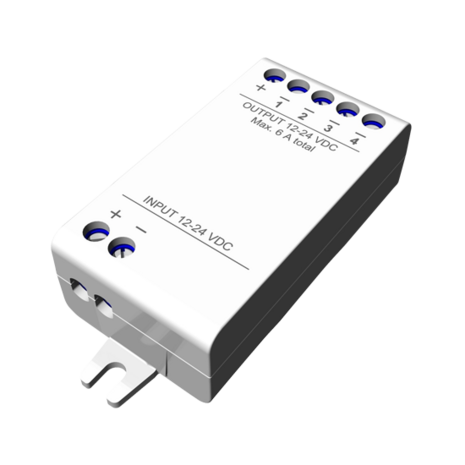

Bluetooth controller. Uitermate geschikt voor het dimmen van 12 of 24 VDC Ledstrips of spots.
Afhankelijk van het gekozen profiel kan er Tunable White, Dim to Warm, RGBW etc. worden aangestuurd.
Voeding 12-24 VDC
| Item |
1002589 |
| |
|
| Input |
|
| Voltage range |
12-24 VDC |
| Max. input current |
6 A |
| No-load standby power |
< 0,3 W |
| |
|
| Output |
|
| Output voltage |
same as input voltage |
| Max. output power |
144 W @ 24 VDC |
| |
72 W @ 12 VDC |
| Max. output current |
6 A (can be freely divided |
| |
between the channels) |
| Min. load requirement |
0 W |
| Dimming method |
Pulse Width Modulation (PWM) |
| |
|
| Radio transceiver |
|
| Operating frequencies |
2,4...2,483 Ghz |
| Maximum output power |
+4 dBm |
| |
|
| Operating conditions |
|
| Ambient temperature, ta |
-20...+45°C |
| Max. case temperature, tc |
+75°C |
| Storage temperature |
-25...+75°C |
| Max. relative humidity |
0...80%, non-cond. |
| |
|
| Connectors |
|
| Wire range, solid & stranded |
0,75 - 1,5 mm2 |
| |
14 - 22 AWG |
| Wire strip length |
6 - 7 mm |
| |
|
| Tightening force |
0,4 Nm |
| Mechanical data |
|
| Dimensions |
72,6 x 30,0 x 18,0 mm |
| Weight |
23 g |
| Degree of protection |
IP20 (indoor use only) |
