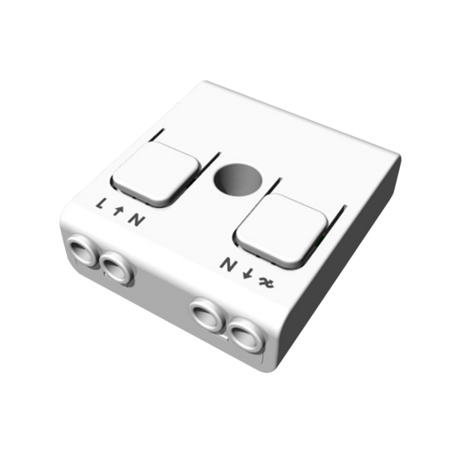

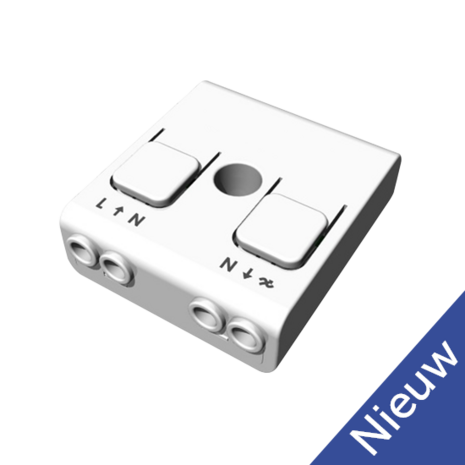

Trailing Edge controller, max. 230V/150W

Bluetooth controller voor Trailing Edge dimmen van gloeilampen of retrofit LED lichtbronnen. Het maximale vermogen is 150W voor gloeilampen en 50W voor Retrofit lichtbronnen.



Bluetooth controller voor Trailing Edge dimmen van gloeilampen of retrofit LED lichtbronnen.
Het maximale vermogen is 150W voor gloeilampen en 50W voor Retrofit lichtbronnen.


Item 1003033

Input
Voltage range  85-240 VAC
Frequency  50-60 Hz
Max. mains current  0,65 A
No-load standby power  < 0,3 W

Output
Dimming method  Trailing-edge phase control
Max. output power
 - Incandescent and high voltage halogen bulbs  150 W @ 230 VAC
   70 W @ 110 VAC
 - high voltage AC LED modules  150 W @ 230 VAC
   70 W @ 110 VAC
 - Dimmable LED and CFL bulbs  50 W @ 230 VAC
   25 W @ 110 VAC
 - Dimmable electronic transformers  50 W @ 230 VAC
   25 W @ 110 VAC
Max. output current  0,65 A
Min. load requirement  1 W
Max. current pulse  4 A

Radio transceiver
Operating frequencies  2,4...2,483 Ghz
Maximum output power  +4 dBm

Operating conditions
Ambient temperature, ta  -20...+45 °C
Max. case temperature, tc  +65 °C
Storage temperature  -25...+75 °C
Max. relative humidity  0...80%, non-cond.

Connectors
Wire range, solid & stranded  0,5-1,5 mm2
   16-20 AWG
Wire strip length  6-8 mm

Mechanical data
Dimensions  40,4 x 36,3 x 14,0 mm
Weight  15 g
Degree of protection  IP20 (indoor use only)
