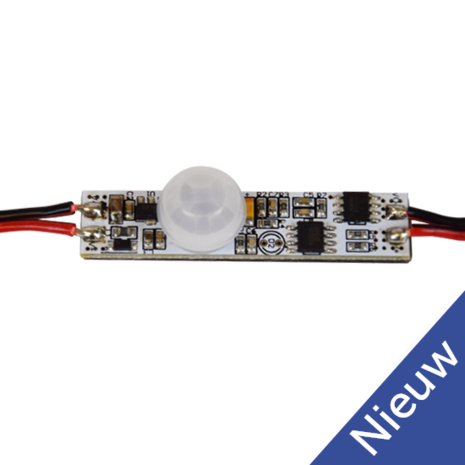

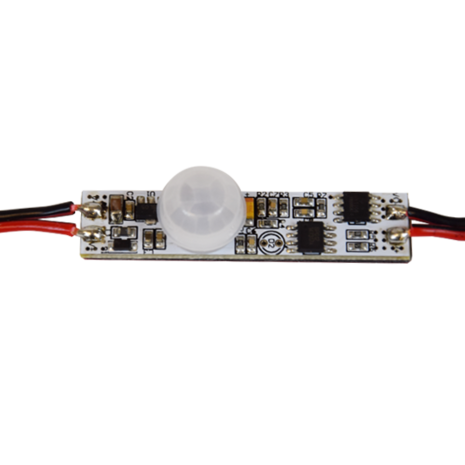

Profile Motion sensor switch 12/24V

For LED Strip in profile



Item: 1003016


Features
● PIR motion sensor switch, connected directly to the low voltage LED strip.
● When people or objects enter the sensitive field, the strip turn on.
 When these exit the sensitive field, the strip turn off after 30 seconds.
● Max 3A output current, max output power 72W@24V.
● Generally installed in the aluminum lamp strip housing.
● 3M paste in the bottom of the PCBA make easy installation and security.
● Low cost and high stability.
● Widely used in table lamps, bedroom lamps, wardrobe lights, etc

Input and Output
Input voltage 12-24VDC
Output voltage  12-24VDC
Output power Max. 36W@12V | Max. 72W@24V

Sensor data
Sensitive field ⩽3m
Sensitivity angle 120

Environment
Operation temperature  -30°C + 55°C

Safety and EMC
EMC standard (EMC) EN301 489,EN 62479
Safety standard(LVD)  EN60950
Certification CE,EMC,LVD

Warranty and Protection
Warranty 5 years
Protection Reverse Polarity
