LRS Screens Indoor & Outdoor Rental

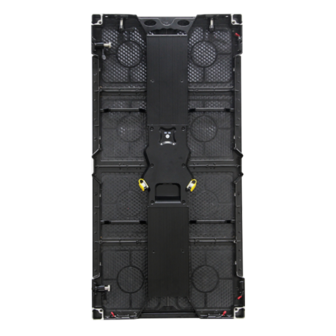

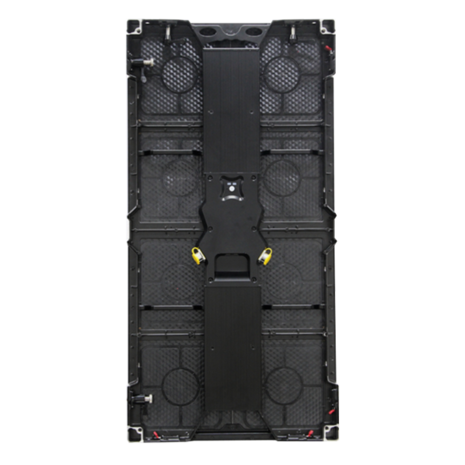

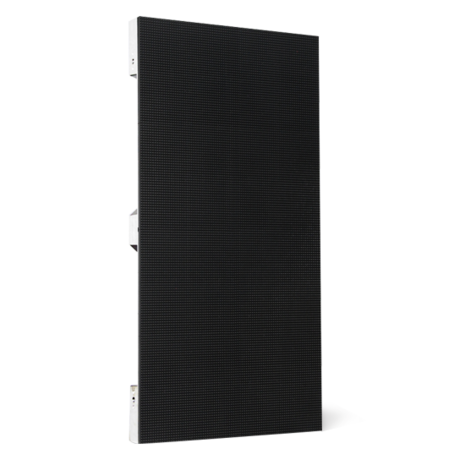

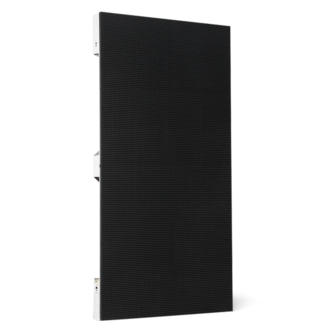

LRS LED Screen Indoor & Outdoor Rental



INDOOR:


Product type

Pixel pitch(mm)

LRS4

4.8

LRS5

5.9













Pixel configuration

SMD2020 Black LED

SMD3528







Module size(mm)

250x250

250x250







Cabinet size(W"H*D mm)

500x1000x65

500x1000x65







Pixel Density (Pixels m2)

43,264

28,224







Brightness(cd/m2)

800 < & < 1000

>1000 (2500)







Cabinet Material

Die cast Aluminium

Die cast Aluminium







Cabinet weight(kg)

~13kg

~13kg







Input Power Frequency

>1920 Hz

>1920 Hz







Input voltage Nominal V

220V (110, 11().220)

220V (110. 11().220)








OUTDOOR:


Product type

Pixel pitch(mm)

LRD4

4.8

LRD5

5.9

LRD6

6.9









Pixel configuration

SMD2525

SMD3535

SMD3535





Module size(mm)

250x250

250x250

250x250





Cabinet size(W"H*D mm)

500x1000x65

500x1000x65

500x1000x65





Pixel Density (Pixels m2)

43,264

28,224

20,738





Brightness(cd/m2)

4500 < & < 5500

>4800

>4500





Cabinet Material

Die cast Aluminium

Die cast Aluminium

Die cast Aluminium





Cabinet weight(kg)

~13.5kg

~13.5kg

~13.5kg





Input Power Frequency

>1920 Hz

>1920 Hz

>1920 Hz





Input voltage Nominal V

220V (110, 11().220)

220V (110. 11().220)

220V (110. 110-220)
